- CPU & Memory : 64M RAM and 512 Flash Memory
- Sweden Silicon Fingerprint Sensor : 1000 fingerprints for 1:N
- 200,000 fingerprints for 1:1
- Identification Time : Less than 2 seconds for 1:N
- Verification Time : Less than 1 second for 1:1
- FAR (False Acceptance Ratio) : <0.0001 % / <0.1 %
- FRR(False Reject Ratio) : <0.1 %
- RFID Frequency : RF 125Khz for ASK modulation
- RFID Proximity Reader Format : Up to 10cm of EM Proximity Card
- Access Mode : Fingerprint only, Card+fingerprint,
- Card only or Card+PIN operation
- Max. Numbers of server : No limit
- Max. Numbers of user : 200,000 Users
- Numbers of Event Buffer in offline : 1,000,000 events buffer
- Output Wiegand Data from Reader : Standard 26 / 32 bits wiegand
- Distance from Reader to AC Control Panel : Max. 150m (suggestion distance 80m)
- Synchronize Real Time Clock Everyday : By a timer dry contact relay or software
- Communication : TCP/IP 10M/100M adaptive
- Distance from Reader to Network Switch : Max. 100m for TCP/IP
- Power Consumption : DC12V / Less than 1500mA
- Operation Temperature : - 20 C~70 C
- Operation Humidity : 10-90 �H RH, No Condensation

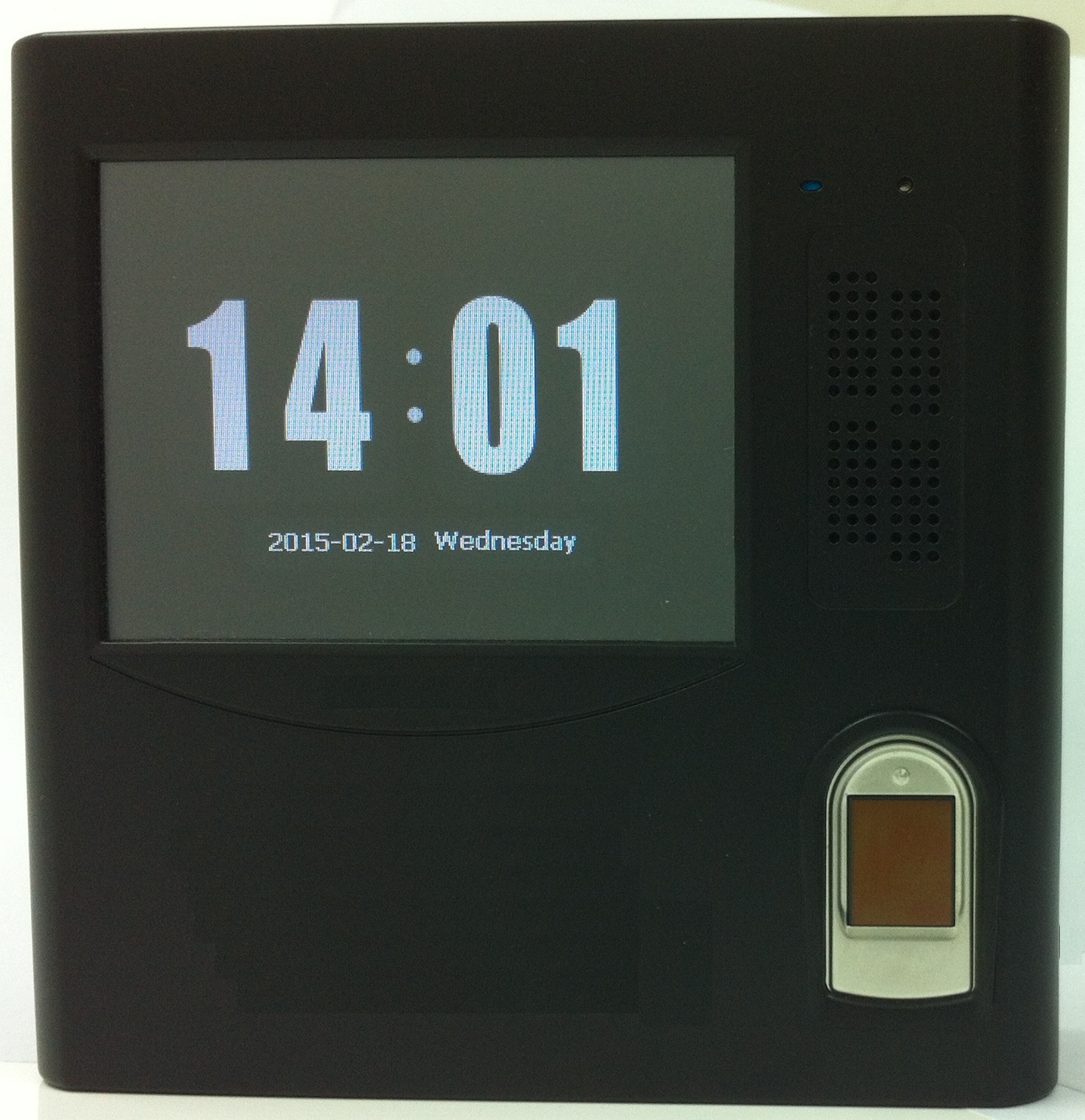

- Dimensions of iSEW35FR Device : 120mm x 118mm x 37mm
|
|
