- CPU & Memory : 64M RAM and 512 Flash Memory
- RFID Frequency : RF 13.56Mhz for ASK modulation
- RFID Proximity Reader Format : Up to 10cm of Mifare proximity smart Card
- Access Mode : Card only or Card+PIN operation
- Max. Numbers of reader : No limit
- Max. Numbers of cardholder : 200,000 cardholders
- Numbers of Event Buffer in offline : 1,000,000 events buffer
- Output Wiegand Data from Reader : Standard 26/34 bits (option: sector ID/64 bits)
- Output Data from Touch Screen Keypad : 4 or 8 bit
- Distance from Reader to AC Control Panel: Max. 150m (suggestion distance 80m)
- Synchronize Real Time Clock Everyday : By a timer dry contact relay or software
- Communication : TCP/IP 10M/100M adaptive
- Distance from Reader to Network Switch : Max. 100m for TCP/IP
- Power Consumption : DC12V / Less than 1500mA
- Operation Temperature : - 20 C~70 C
- Operation Humidity : 10-90 �H RH, No Condensation

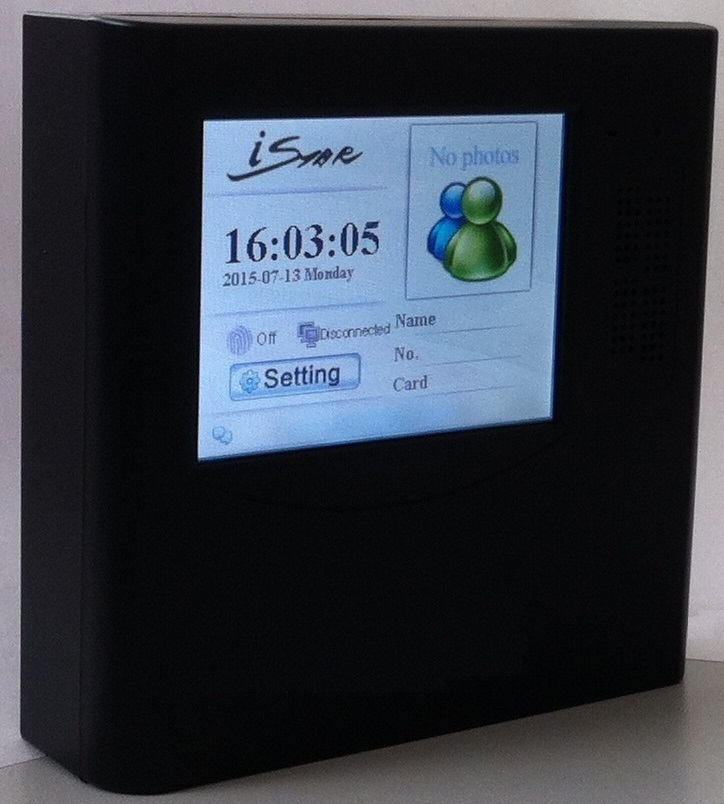

- Dimensions of iSMW35R Device : 120mm x 118mm x 37mm
|
|
