- CPU & Memory : 64M RAM and 512 Flash Memory
- Built-in Sweden Silicon Fingerprint Sensor : 1000 fingerprints for 1:N
- 200,000 fingerprints for 1:1
- Identification Time : Less than 2 seconds for 1:N
- Verification Time : Less than 1 second for 1:1
- FAR (False Acceptance Ratio) : <0.0001 % / <0.1 %
- FRR(False Reject Ratio) : <0.1 %
- Built-in RFID HID Proximity : RF 125Khz frequency and ASK type modulation
- Access Mode : Fingerprint only, Card+fingerprint, Card only, Card+PIN or PIN only operation
- Controlled Doors : Single or Two Doors
- Max. Numbers of server : No limit
- Max. Numbers of user : 200,000 Users
- Numbers of Event Buffer in offline : 1,000,000 events buffer
- Support Time Schedule operation : Up to 15 time schedules
- Support Holiday Schedule operation : Up to 10 holiday schedules
- External Reader Ports with AC module : Support 2 units
- Input Wiegand Format of Reader : Standard 26 / 32 bits wiegand
- Distance from Reader to AC module : Max. 150m (suggestion distance 80m)
- Communication : TCP/IP 10M/100M adaptive
- Distance from Network to Controller : Max. 100m for TCP/IP
- Door opening time setting : 1-99000 min. seconds (adjustable)
- Alarm Feature of AC module : Door force open
- Remote open door : Software
- Power Consumption : DC12V / Less than 1500mA
- Operation Temperature : - 20 C~70 C
- Operation Humidity : 10-90 �H RH, No Condensation

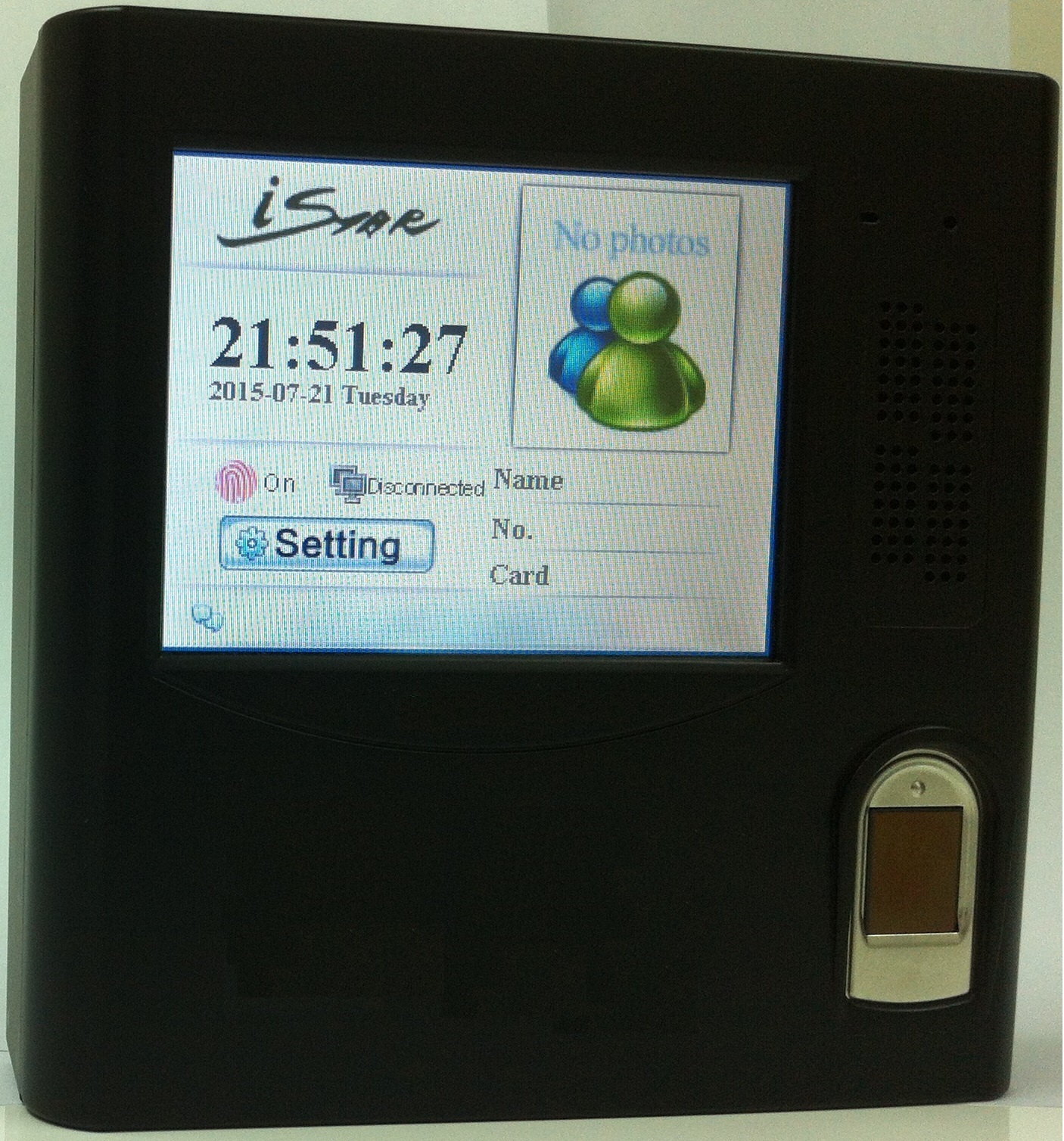

- Dimensions of iSEW35F Device / AC035 Device : 120mm x 118mm x 37mm / 88mm x 92mm x 18mm
|
|
