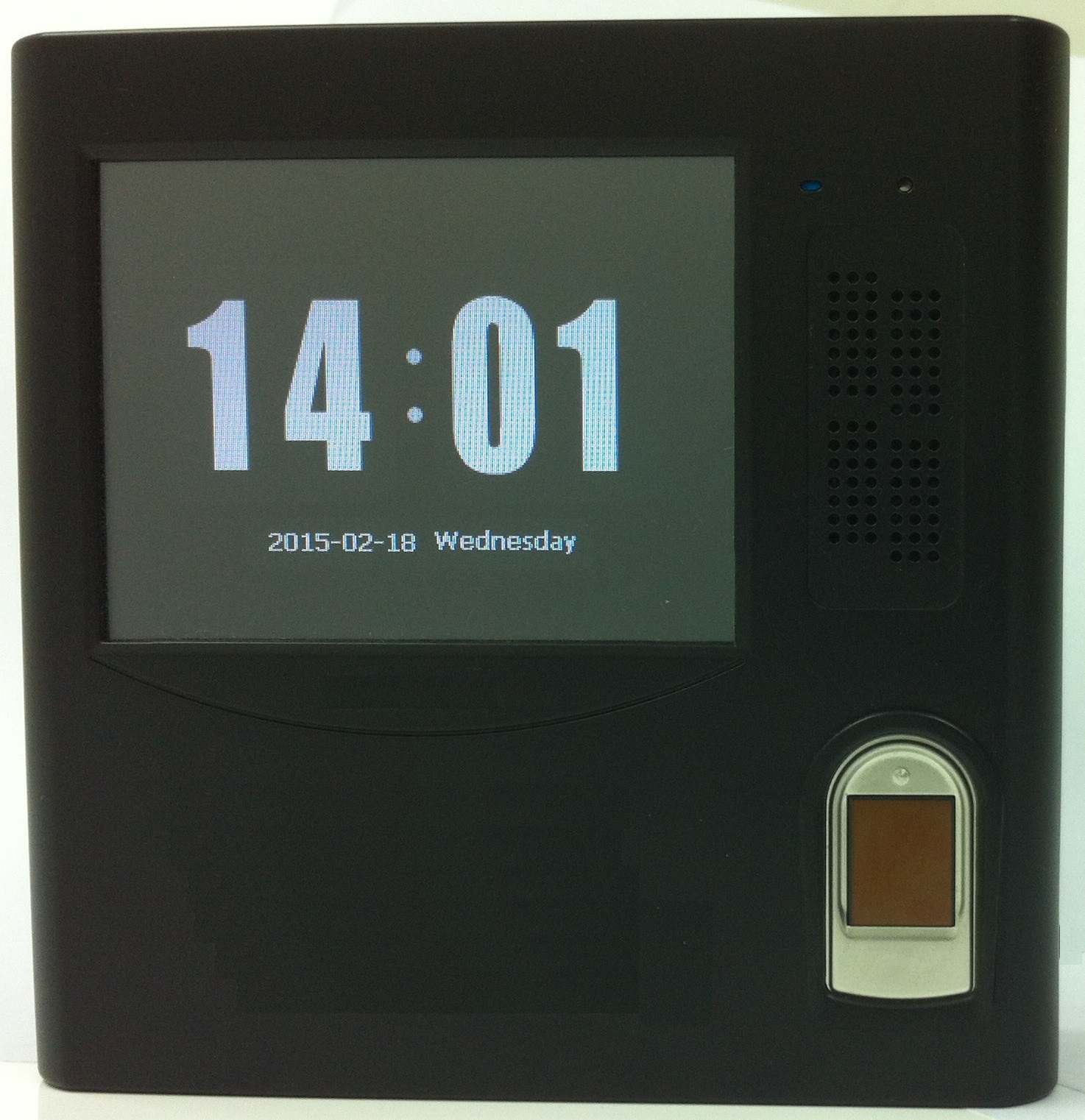

Product > iStar Color VGA Screen Embedded web > iSEW35F TCP/IP Web base fingerprint/RF access control embedded server



  • CPU & Memory : 64M RAM and 512 Flash Memory
  • Built-in Sweden Silicon Fingerprint Sensor : 1000 fingerprints for 1:N
  • 200,000 fingerprints for 1:1
  • Identification Time : Less than 2 seconds for 1:N
  • Verification Time : Less than 1 second for 1:1
  • FAR (False Acceptance Ratio) : <0.0001 % / <0.1 %
  • FRR(False Reject Ratio) : <0.1 %
  • Built-in RFID EM Proximity : RF 125Khz frequency and ASK type modulation
  • Access Mode : Fingerprint only, Card+fingerprint,
  • Card only, Card+PIN or PIN only operation
  • Controlled Doors : Single or Two Doors
  • Max. Numbers of server : No limit
  • Max. Numbers of user : 200,000 Users
  • Numbers of Event Buffer in offline : 1,000,000 events buffer
  • Support Time Schedule operation : Up to 15 time schedules
  • Support Holiday Schedule operation : Up to 10 holiday schedules
  • External Reader Ports with AC module : Support 2 units
  • Input Wiegand Format of Reader : Standard 26 / 32 bits wiegand
  • Distance from Reader to AC module : Max. 150m (suggestion distance 80m)
  • Communication : TCP/IP 10M/100M adaptive
  • Distance from Network to Controller : Max. 100m for TCP/IP
  • Door opening time setting : 1-99000 min. seconds (adjustable)
  • Alarm Feature of AC module : Door force open
  • Remote open door : Software
  • Power Consumption : DC12V / Less than 1500mA
  • Operation Temperature : - 20 C~70 C
  • Operation Humidity : 10-90 �H RH, No Condensation
  • Dimensions of iSEW35F Device / AC035 Device : 120mm x 118mm x 37mm / 88mm x 92mm x 18mm
