- CPU & Memory : 64M RAM and 512 Flash Memory
- Built-in RFID HID Proximity : RF 125Khz frequency and FSK modulation
- Access Mode : Card only or Card+PIN operation
- Controlled Doors : Single or Two Doors
- Max. Numbers of server : No limit
- Max. Numbers of user : 200,000 Users
- Numbers of Event Buffer in offline : 1,000,000 events buffer
- Support Time Schedule operation : Up to 15 time schedules
- Support Holiday Schedule operation : Up to 10 holiday schedules
- External Reader Ports with AC module : Support 2 units
- Input Wiegand Format of Reader : Standard 26/32/34/36/37 bits wiegand
- Distance from Reader to AC module : Max. 150m (suggestion distance 80m)
- Communication : TCP/IP 10M/100M adaptive
- Distance from Network to Controller : Max. 100m for TCP/IP
- Door opening time setting : 1-99000 min. seconds (adjustable)
- Alarm Feature of AC module : Door force open or open too long
- Remote open door : Software
- Power Consumption : DC12V / Less than 1500mA
- Operation Temperature : - 20 C~70 C
- Operation Humidity : 10-90 �H RH, No Condensation

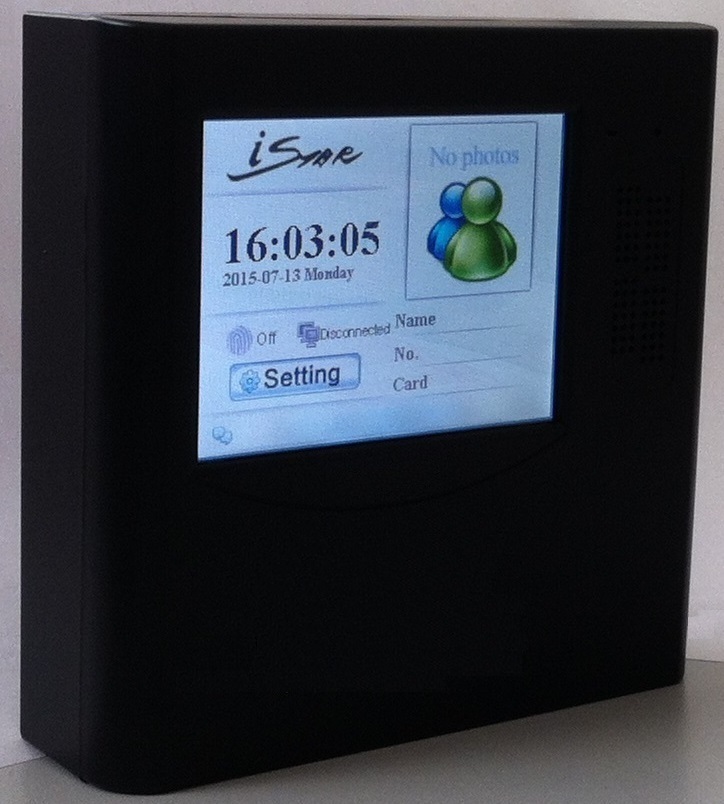

- Dimensions of iSHW35/AC035 Device : 120 x 118 x 37mm/88 x 92 x 18mm
|
|
