- CPU & Memory : 64M RAM and 512 Flash Memory
- Built-in RFID Mifare Proximity : RF 13.56Mhz frequency & ASK modulation
- Access Mode : Card only or Card+PIN operation
- Controlled Doors : Single or Two Doors
- Max. Numbers of server : No limit
- Max. Numbers of user : 200,000 Users
- Numbers of Event Buffer in offline : 1,000,000 events buffer
- Support Time Schedule operation : Up to 15 time schedules
- Support Holiday Schedule operation : Up to 10 holiday schedules
- External Reader Ports with AC module : Support 2 units
- Input Wiegand Format of Reader : Standard 26 / 34 bits wiegand
- Distance from Reader to AC module : Max. 150m (suggestion distance 80m)
- Communication : TCP/IP 10M/100M adaptive
- Distance from Network to Controller : Max. 100m for TCP/IP
- Door opening time setting : 1-99000 min. seconds (adjustable)
- Power Consumption : DC12V / Less than 1500mA
- Operation Temperature : - 20 C~70 C
- Operation Humidity : 10-90 �H RH, No Condensation

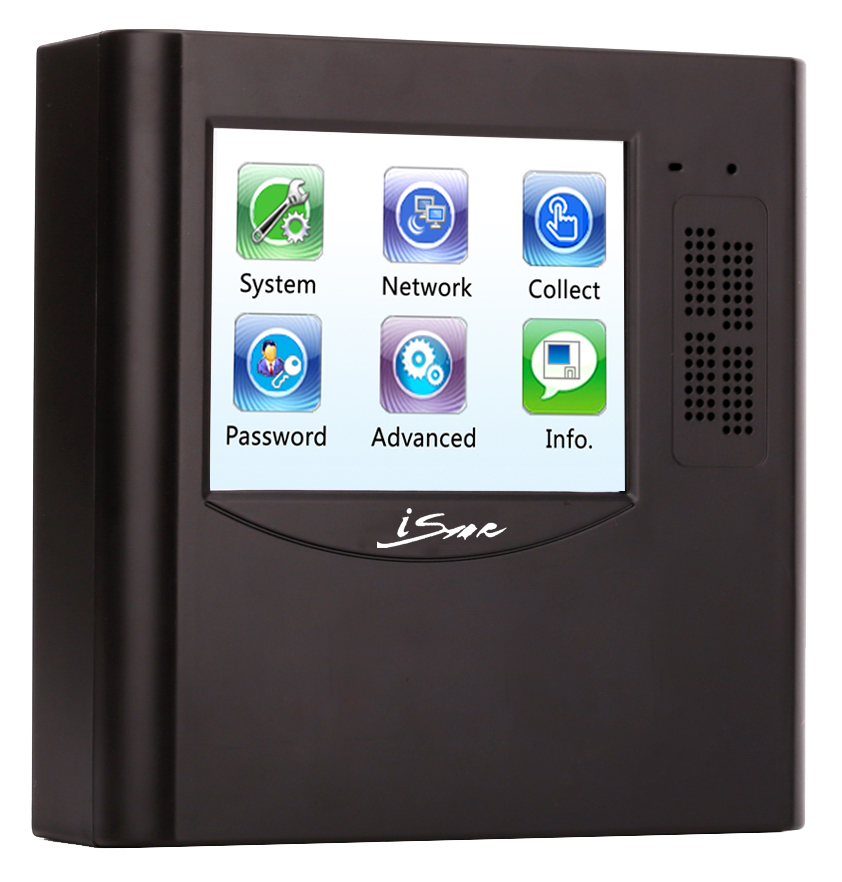

- Dimensions of iSMW35 Device : 120mm x 118mm x 37mm
- Dimensions of AC035 Device : 88mm x 92mm x 18mm
- System Network Diagram
- Option : IS05 Control Panel
- Cabinet with Power Supply
- Unit for DC12V / max. 3A
- System Specification
- Software Monitoring
|
|
